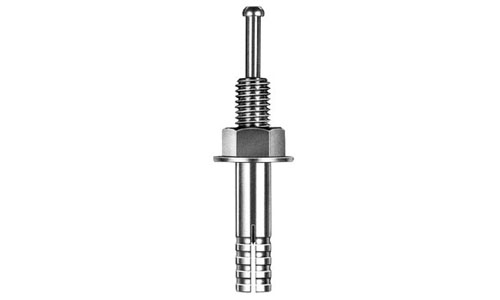

產品名稱 : HIT ANCHORS
產品描述
* 產品介紹 :

• HIT ANCHOR is a fast & easy way to use expansion anchor, no precise hole depth required and installation condition can be adjusted from pin and nut.

• Nail made by high tensile material.

• The test values listed below were obtained using 200- 250 kgs/cm² concrete (no aggregate). A safe working load should not exceed 25% sated values.
產品介紹
* 功能說明 :

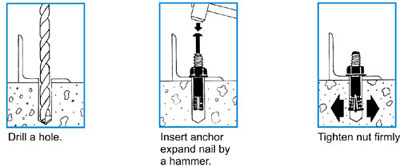

proimages/Anchor/HIT_ANCHORSp14-03.jpg

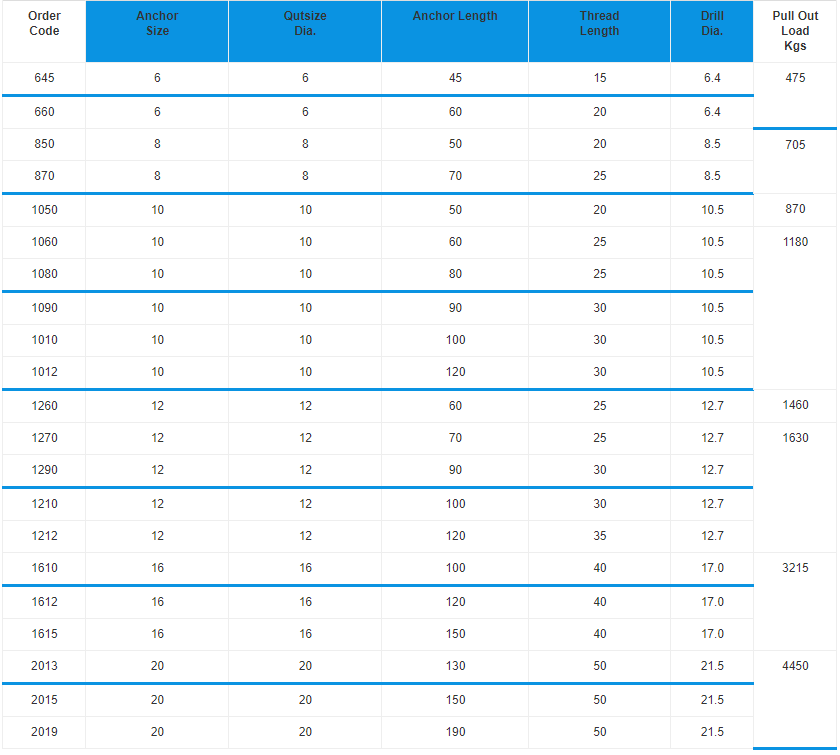

proimages/Anchor/HIT_ANCHORS_ANCHOR-11_-table.png

TYPE T
proimages/Anchor/HIT_ANCHORSp14-04.jpg
Order
Code		 Anchor
Dia. (d) Ø		 Anchor
Length (L)		 Head Dia
Ø (D)		 Drill
Dia. Ø		 Pull Out
Load
Kgs
420 4 20 8.0 4.3 287
425 4 25 8.0 4.3
525 5 25 9.0 5.4 460
530 5 30 9.0 5.4
630 6 30 11.0 6.4 685
640 6 40 11.0 6.4
650 6 50 11.0 6.4
660 6 60 11.0 6.4
840 8 40 14.5 8.5
860 8 60 14.5 8.5
1050 10 50 16.0 10.5
1070 10 70 16.0 10.5
TYPE Y
proimages/Anchor/HIT_ANCHORSp14-05.jpg
Order
Code		 Anchor
Dia. (d) Ø		 Anchor
Length (L)		 Head Dia
Ø (D)		 Drill
Dia. Ø
420 4 20 8 4.3
425 4 25 8 4.3
525 5 25 10 5.4
530 5 30 10 5.4
630 6 30 12 6.4
640 6 40 12 6.4
840 8 40 14 8.5
860 8 60 14 8.5
1050 10 50 18 10.5
1070 10 70 18 10.5
Stainless steel and special length are available.
