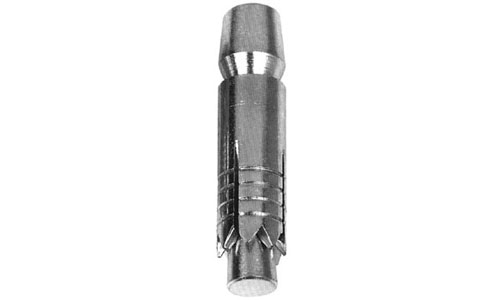

Product Name : SELF DRILL ANCHORS
Product Description
* Description :
• The anchor body with prongs on the end can be used for drilling with tool.
• Self Drill anchor is an improved expansion anchor with internal thread and a plug, and is the most popular anchor.
• Anchor can be installed with Hex Bolts, Stud and Hook bolt, etc., After installation, concrete will not be effected in appearance as a rise on the surface.
Product
* Features :
Order
Code
Bolt
Size
Anchor
Dia.
Hole
Depth
Depth
Thread
SDAM6
SDAW20
M6
W1/4
11.0 28 9
SDAM8
SDAW25
M8
W5/16
12.0 33 12
SDAM10
SDAW30
M10
W3/8
14.2 39 14
SDAM12
SDAW40
M12
W1/2
17.5 52 20
SDAM16
SDAW50
M16
W5/8
21.4 63 24
SDAM20
SDAW60
M20
W3/4
25.4 83 31
SDAM22
SDAW70
M22
W7/8
28.5 93 36
SDAI20 1/4-20 7/16 1-3/32 3/8
SDAI25 5/16-18 15/32 1-5/16 15/32
SDAI30 3/8-16 9/16 1-17/32 9/16
SDAI40 1/2-13 11/16 2-1/32 13/16
SDAI50 5/8-11 27/32 2-15/32 15/16
SDAI60 3/4-10 1" 3-1/4 1-7/32
SDAI70 7/8-9 1-1/8" 3-11/16 1-13/32
