JACK NUT
Product
* Features :
* Specification :
NOTE:STAINLESS STEEL & ALUMINIUM ARE AVAILABLE.

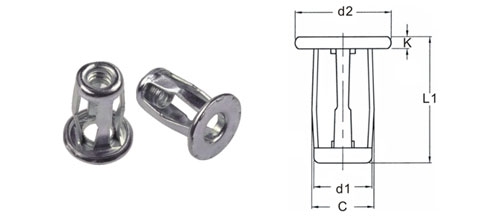

| Thread Size |
Code No |
L | G | C | d1 | d2 | k |
| M4 S(1/8S) | JN405 | 17 | 0-5 | 8 | 7.5 | 12 | 1.6 |
| M4 L(1/8L) | JN410 | 22 | 5-10 | 8 | 7.5 | 12 | 1.6 |
| M5 S(3/16S) | JN505 | 18 | 0-5 | 10 | 9 | 13.9 | 1.6 |
| M5 L(3/16L) | JN510 | 23 | 5-10 | 10 | 9 | 13.9 | 1.6 |
| M6 S(1/4S) | JN605 | 18 | 0-5 | 12 | 11 | 16 | 1.6 |
| M6 L(1/4L) | JN610 | 23 | 5-10 | 12 | 11 | 16 | 1.6 |
* Specification :
NOTE:STAINLESS STEEL & ALUMINIUM ARE AVAILABLE.
