Hex Head Standoff
Product
* Features :

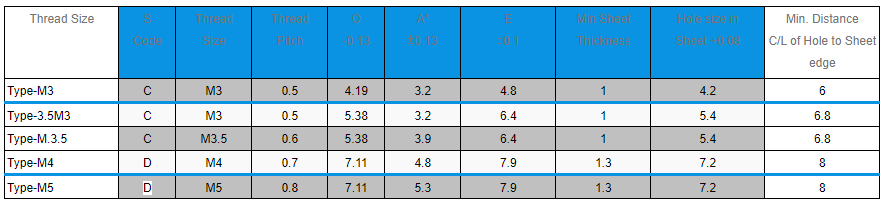

Hex Head Standoff:(Metric Size)
Hex Head Thru-Hole Thread Standoff: H1、H1N、H1S、H1A
Reference Code: SO、SON、SOS、SOA

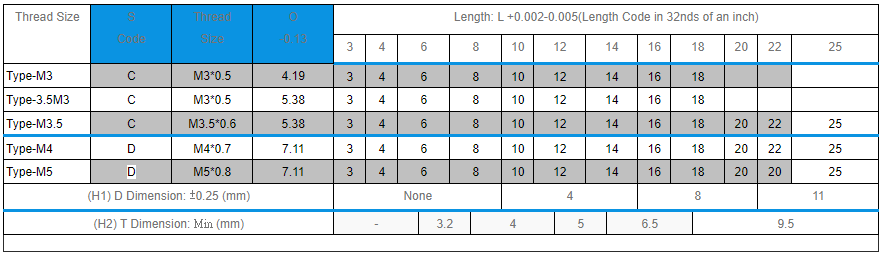

Code: Type-Thread-Length H1-M3-12
Hex Head Blind Thread Standoff: H2、H2N、H2S、H2A
Reference Code: BSO、BSON、BSOS、BSOA
Code: Type-Thread-Length H1-M3-12
|
TYPE |
MATERIAL |
FINISH |
USEIN |
|
H1 H2 |
Heat treated Carbon Steel |
Zinc ASTMB B 633-85 SC1 5µ m Type lll colorless |
HRB-80 Max |
|
H1N H2N |
Non-Heat Treated carbon Steel |
Zinc ASTMB B 633-85 SC1 5µ m Type lll colorless |
HRB-60 Max |
|
H1S H2S |
Stainless Steel 303 |
Passivated tested ASTM A380 |
HRB-70Max |
|
H1A H2A |
Aluminum 7075-T6 |
None |
HRB-50Max |
Thread: Internal ANSI B1.12B,/ANSI/ASME B1.13M,6H
Inch Size: mm
* Counter Bore:H1、H1N、H1S、H1A
The minimum of blind thread H2 series type is 6mm
