GRAVITY/SPRING TOGGLE ANCHORS

GRAVITY/SPRING TOGGLE ANCHORS
Product Name : GRAVITY/SPRING TOGGLE ANCHORS
Product Description
* Description :

• Heavy gauge wings is a high capacity truss design For fixing to cavity walls and ceiling of low structural strength.

• Any screw head and spring available at request.

• A safe working load should not exceed 25% of stated value.

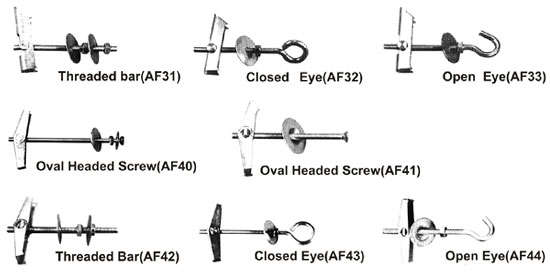

Product
* Features :
proimages/Anchor/GRAVITYSPRING_TOGGLE_ANCHORSp30-03.jpg
proimages/Anchor/GRAVITYSPRING_TOGGLE_ANCHORSp30-04.jpg

Order
Code		 Screw
Size

Drill
Dia.

 Weight
Kgs/1000pcs		 Qty.per
Box/Ctn.
AF3001 M6 x 80 16 39.6 100/600
AF3101 M6 x 100 16 42.0 100/600
AF3201 M6 x 102 16 48.6 100/600
AF3301 M6 x 102 16 45.6 100/600
AF4001 M4 x 100 12 15.8 100/600
AF4002 M5 x 95 14 22.8 100/600
AF4101 M4 x 90 12 14.5 100/600
AF4201 M5 x 81 14 19.2 100/600
AF4301 M5 x 90 14 25.5 100/600
AF4401 M4 x 100 12 17.8 100/600
