clinching stud CLINCHING-02

* 功能說明 :

Clinching Stud:(Flush Head)

Clinching Stud: Flush Head Type

X1、X1S、X1A

Code: Type-Thread-Length

X1-M3-12

Reference Code: TH、THS、FH、FHS、FHA

TYPE	MATERIAL	FINISH	USEIN
X1	Heat treated Carbon Steel	Zinc ASTMB B 633-85 SC1 5µ m	HRB-80 Max
X1S	300 SERIES Stainless Steel	Passivated and /or tested ASTM A380	HRB-70 Max
X1A	Aluminum 2024-T4	None	HRB-50Max

Provide a strong flush-head assembly in material as thin as. 040 inch/1.0 mm

(S-Code : C)with high torque-out and push out performance.

X1 ─ M3 ─ 12

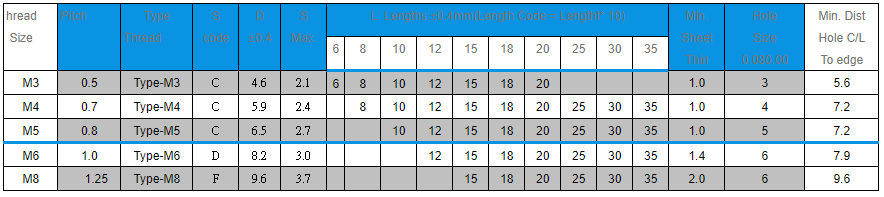

Metric Size: mm

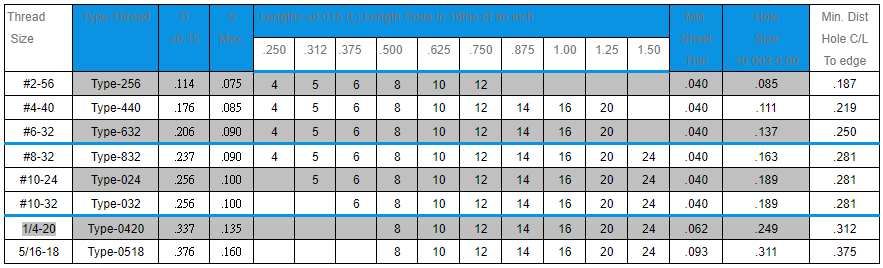

Inch Size X1、X1S、X1A:

clinching stud
