產品名稱 : SCREW PLUG
產品描述
* 產品介紹 :

It’s ideal to be used for building materials, even thin. It endures extreme temperature (-40° to +80℃), urst, corrosion, aging, and chemical affect. Meanwhile it’s good at electric insulation, tensibility, and high pressure. The structure designed with gear can prevent itself from sliding in the hole.
產品介紹
* 功能說明 :

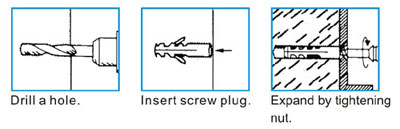

proimages/Anchor/SCREW_PLUGp23-03-1.jpg

Order
Code		 Anchor
Size		 Drill
Size		 Screw
Size		 Quantities
Box/Ctn
SP0525 5 x 25 Ø5 Ø2.5 - 4 100/1000
SP0630 6 x 30 Ø6 Ø3.5 - 5 100/1000
SP0735 7 x 35 Ø7 Ø4.0 - 5 100/1000
SP0840 8 x 40 Ø8 Ø4.5 - 6 100/1000
SP1050 10 x 50 Ø10 Ø6.0 - 8 100/1000
SP1260 12 x 60 Ø12 Ø8.0 - 10 100/1000
