NYLON /PVC FRAME ANCHORS
產品介紹
* 功能說明 :

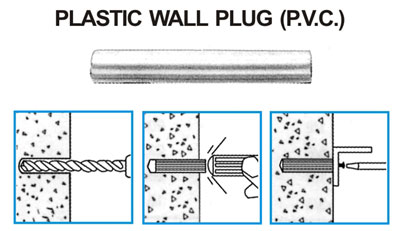

The Plastic Wall Plug is designed for light duty fastening applications. It is injection molded from a ductile plastic and is designed to be used with sheet metal or wood screws. Longitudinal ribs on the anchor body prevent it from tuning during tightening of the screw. This inexpensive plastic screw anchor comes color-coded by diameter for easy applications where holding power is not a critical factor. It should not be used overhead.

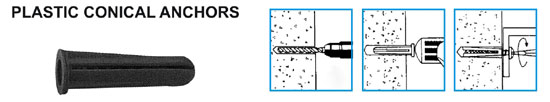

The Plastic Conical Anchor is a plastic anchor designed for use with lightweight fixtures. It can be used in concrete, block, brick and wallboard. It is injection molded from an engineered plastic and is designed to be used in conjunction with a sheet metal or wood screw.

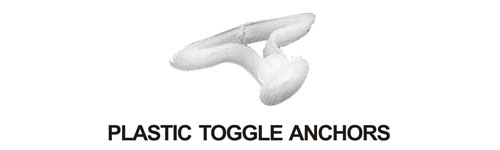

| Order Code | Wall Thickness to be Fastened |
Hole Size |
Quantities Box/Ctn |
| APT6 | 1/8-1/4 (3-6mm) | 5/16 (8mm) | 100/1000 |
| APT13 | 3/8-1/2 (9-13mm) | 5/16 (8mm) | 100/1000 |
| APT19 | 5/8-3/4 (16-19mm) | 5/16 (8mm) | 100/1000 |
| Order Code |
Color O.D |
Length (mm) |
Length | Quantities Box/Ctn |
| APW0425 | Yellow Ø4 | 25 | 1 | 100/1000 |
| APW0525 | White Ø5 | 25 | 1 | 100/1000 |
| APW0535 | White Ø5 | 35 | 1-3/8 | 100/1000 |
| APW0625 | Red Ø6 | 25 | 1 | 100/1000 |
| APW0630 | Red Ø6 | 30 | 1-3/16 | 100/1000 |
| APW0635 | Red Ø6 | 35 | 1-3/8 | 100/1000 |
| APW0650 | Red Ø6 | 50 | 2 | 100/1000 |
| APW0725 | Green Ø7 | 25 | 1 | 100/1000 |
| APW0730 | Green Ø7 | 30 | 1-3/16 | 100/1000 |
| APW0735 | Green Ø7 | 35 | 1-3/8 | 100/1000 |
| APW0750 | Green Ø7 | 50 | 2 | 100/1000 |
| APW0825 | Blue Ø8 | 25 | 1 | 100/1000 |
| APW0835 | Blue Ø8 | 35 | 1-3/8 | 100/1000 |
| APW0850 | Blue Ø8 | 50 | 2 | 100/1000 |
| APW0855 | Blue Ø8 | 55 | 2-3/16 | 100/1000 |
| APW1035 | Orange Ø10 | 35 | 1-3/8 | 50/500 |
| APW1050 | Orange Ø10 | 50 | 2 | 50/500 |
| APW1060 | Orange Ø10 | 60 | 2-18 | 50/500 |
| Order Code | O.D | Length Inch |
| APC05060 | 5 | 3/4 |
| APC06700 | 6 | 7/8 |
| APC08100 | 8 | 1 |
| APC10130 | 10 | 1-3/8 |
