LIGHT DUTY SLEEVE ANCHORS

LIGHT DUTY SLEEVE ANCHORS
產品名稱 : LIGHT DUTY SLEEVE ANCHORS
產品描述
* 產品介紹 :

• For fixing of concrete, solid bricks, perforated bricks, hollow blocks.

• Any screw head available as your requirement.

• Pre-assembled for quick and easy installation.

• High holding power.
產品介紹
* 功能說明 :

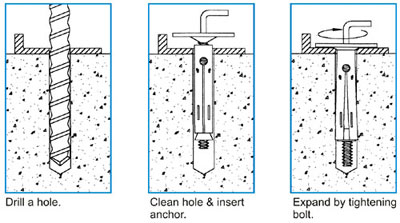

proimages/Anchor/LIGHT_DUTY_SLEEVE_ANCHORSp10-03.jpg

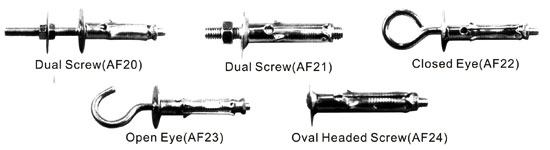

proimages/Anchor/LIGHT_DUTY_SLEEVE_ANCHORSp10-04.jpg

Order
Code		 Screw
Size		 Sleeve
Size		 Dirll
Dia.		 Weight
Kgs /
1000pcs		 Qty. per
Box / Ctn
AF2001 M6 x 80 Ø9 x 36 9 27.8 100/1000
AF2101 M6 x 64 Ø9 x 36 9 20.8 100/1000
AF2201 M4 x 42 Ø8 x 34 8 13.0 100/1000
AF2202 M5 x 46 Ø9 x 36 9 20.8 100/1000
AF2301 M4 x 42 Ø8 x 34 8 12.6 100/1000
AF2302 M5 x 46 Ø9 x 36 9 17.2 100/1000
AF2401 M4 x 46 Ø8 x 34 8 8.8 100/1000
AF2402 M5 x 48 Ø9 x 36 9 13.0 100/1000

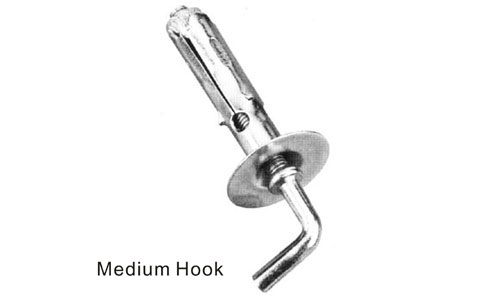

Medium hook and others form can be manufactured as customer's requirement.
