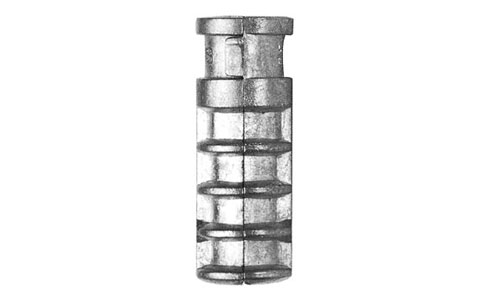

LAG SCREW ANCHORS

LAG SCREW ANCHORS
產品名稱 : LAG SCREW ANCHORS
產品描述
* 產品介紹 :

• Can be used in all types masonry from concrete to brick.

• Unique four-way expansion assures a tight grip even in out-of-round holes.

• Short style for hard masonry, long style for soft.

• Rust-proof.

• The test values listed were obtained using 200-250 kgs/cm² concrete (no aggregate).

• A safe working load should not exceed 25% of stated value.
產品介紹
* 功能說明 :

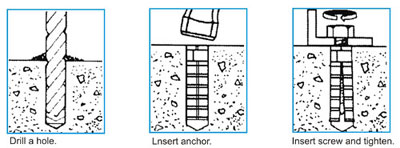

proimages/Anchor/LAG_SCREW_ANCHORSp18-03.jpg
SHORT TYPE
Order
Code		 Anchor
Size		 Drill
Dia		 Quantities
Box / Ctn		 Weight
Kgs / 1000		 Pull Out
Load Kgs
LS20 1/4 1/2 50/500 13.6 250
LS25 5/16 1/2 50/500 13.6 440
LS30 3/8 5/8 50/500 30.6 640
LS40 1/2 3/4 50/500 42.0 1240
LS50 5/8 7/8 25/125 59.0 1280
LS60 3/4 1 25/125 72.6 1640
 LONG TYPE
Order
Code		 Anchor
Size		 Drill
Dia		 Quantities
Box / Ctn		 Weight
Kgs / 1000		 Pull Out
Load Kgs
LL20 1/4 1/2 50/500 18.0 310
LL25 5/16 1/2 50/500 23.8 620
LL30 3/8 5/8 50/500 43.0 1100
LL40 1/2 3/4 50/500 64.7 1670
LL50 5/8 7/8 25/125 100.0 1730
LL60 3/4 1 25/100 111.0 2020
