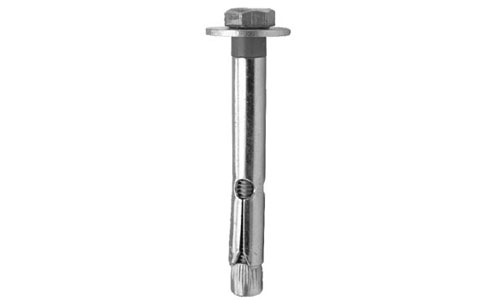

HEX HEAD SLEEVE ANCHORS

HEX HEAD SLEEVE ANCHORS
產品名稱 : HEX HEAD SLEEVE ANCHORS
產品描述
* 產品介紹 :

• The screws of the anchor have been manufactured under the DIN-933 standard and their quality-hardness is 6.8 (i.e. 60 to 80 kg/mm)

• The washer is wide, which gives a bigger allowance for pieces or structures to be fastened.

• While performing the fixing of the anchor, the plastic part or ring gets deformed, which fills and blocks the hole of the piece or structure to be fastened; this plastics absorbs material irregularities, and it is a useful damp-proof piece to protect the inner mechanism of the anchor.

• Any screw head available at your request.

• The cone has some grooves (milling) in order to prevent the anchor from loose or spin movement after fixing into the hole and ready to expansion.
產品介紹
* 功能說明 :

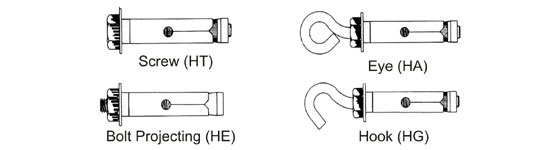

proimages/Anchor/HEX_HEAD_SLEEVE_ANCHORSp09-03.jpg

Order
Code		 Anchor
Size		 Drill
Dia.		 Min. Hole
Depth		 Max. Fixture
Thickness		 Sleeve
Length
AFHT08C M6 x 45 8 43 2 30
AFHT08L M6 x 50 8 43 15 45
AFHT09C M6 x 45 9 43 2 30
AFHT09L M6 x 60 9 43 15 45
AFHT10C M8 x 60 10 55 5 41
AFHT10L M8 x 80 10 55 15 62
AFHT11C M8 x 60 11 55 5 41
AFHT11L M8 x 80 11 55 15 62
AFHT12C M10 x 70 12 70 2 48
AFHT12L M10 x 100 12 70 25 75
AFHT14C M10 x 70 14 70 2 50
AFHT14L M10 x 100 14 70 25 75
AFHT16C M12 x 80 16 80 2 55
AFHT16L M12 x 110 16 80 25 87
AFHT20C M16 x 110 20 90 15 82
AFHT25C M20 x 130 25 105 25 100
AFHE08C M6 x 45 8 43 2 30
AFHE09C M6 x 45 9 43 2 30
AFHE10C M8 x 60 10 55 5 41
AFHE10L M8 x 80 10 55 25 62
AFHE11C M8 x 60 11 55 5 41
AFHE11L M8 x 80 11 55 25 62
AFHE12C M10 x 70 12 70 2 48
AFHE12L M10 x 100 12 70 25 75
AFHE14C M10 x 70 14 70 2 50
AFHE14L M10 x 100 14 70 25 75
AFHA08C M6 x 45 8 43 2 30
AFHA09C M6 x 45 9 43 2 30
AFHA10C M8 x 60 10 55 5 41
AFHA11C M8 x 60 11 55 5 41
AFHA12C M10 x 70 12 70 2 48
AFHA14C M10 x 70 14 70 2 50
AFHA16C M12 x 80 16 80 2 55
AFHG08C M6 x 45 8 43 5 30
AFHG09C M6 x 45 9 43 5 30
AFHG10C M8 x 60 10 55 6 41
AFHG11C M8 x 60 11 55 6 41
AFHG12C M10 x 70 12 70 10 48
AFHG14C M10 x 70 14 70 10 50
AFHG16C M12 x 80 16 80 20 55
