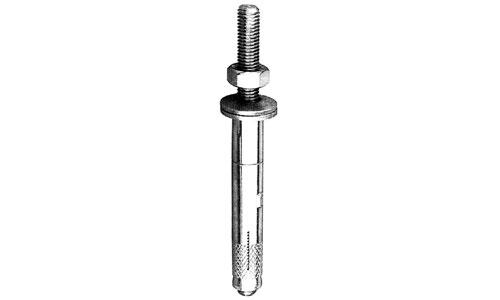

HEAVY DUTY EXPANSION ANCHORS

HEAVY DUTY EXPANSION ANCHORS
產品名稱 : HEAVY DUTY EXPANSION ANCHORS
產品描述
* 產品介紹 :

• Pre-assembled for quick and easy installation,high holding power by tough expanding sleeve and anchor sleeve can be used in heavy-duty applications.

• Versatile and durable.

• Nut dished washer and flat washer are pre-assembled.

• A safe working load should not exceed 25% stated value.
產品介紹
* 功能說明 :

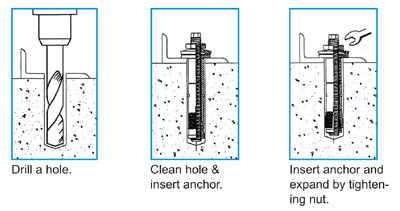

proimages/Anchor/HEAVY_DUTY_EXPANSION_ANCHORSp27-03.jpg

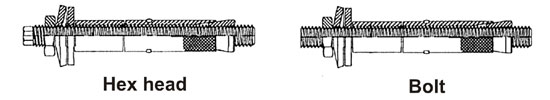

proimages/Anchor/HEAVY_DUTY_EXPANSION_ANCHORSp27-04.jpg

Order
Code		 Anchor
Sizes		 Anchor
Dia.		 Sleeve
Length		 Grade of bolt Pull out
Load (kgs)
AF5001 M10 x 120 14.60 58 8.8 1600
AF5002 M10 x 130 14.60 58 8.8 1600
AF5003 M10 x 140 14.60 58 8.8 1600
AF5004 M10 x 150 14.60 58 8.8 1600
AF5005 M12 x 125 17.60 60 8.8 2500
AF5006 M12 x 135 17.60 60 8.8 2500
AF5007 M12 x 140 17.60 60 8.8 2500
AF5008 M12 x 150 17.60 60 8.8 2500
AF5009 M16 x 160 23.80 83 8.8 3300
AF5010 M16 x 175 23.80 83 8.8 3300
AF5011 M16 x 180 23.80 83 8.8 3300
