CONCRETE SCREWS

CONCRETE SCREWS

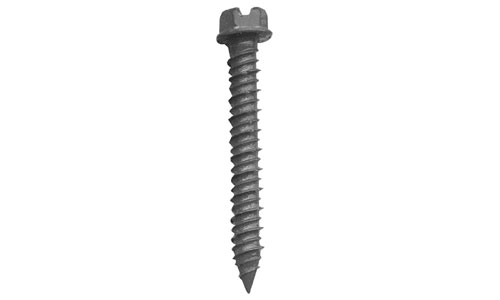

產品名稱 : CONCRETE SCREWS
產品描述
* 產品介紹:

• Flat Countersunk with Phillips＃3 Driver, Hex with Phillips, Slot Combination.

• The raised threads cut into the masonry, while the lowered threads provid exceptional holding power and stability.

• Diamond cut notches on the raised thread are dual purposes. They cut sharply into the concrete, while at the same time expel dust and concrete chips.

• Xylan coating offers high resistance to corrosion. It can be big choice of colors in decoration.
產品介紹
* 功能說明 :

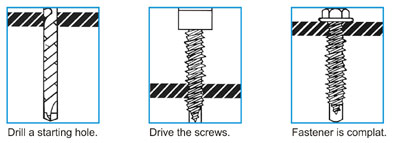

proimages/Anchor/CONCRETE_SCREWSp29-03.jpg

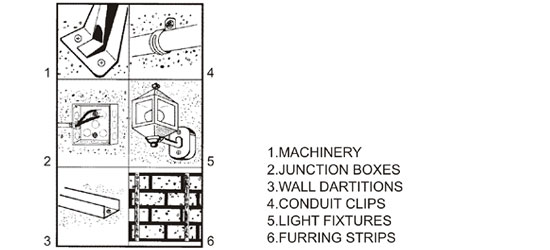

proimages/Anchor/CONCRETE_SCREWSp29-04.jpg

Hex
Head		 Flat
Head

Screw
Size

 Min
Embedment		 Drill
Bit
TH 3112 TF 3112 3/16 x 1-1/4 1 5/32 x 3-1/2
TH 3116 TF 3116 3/16 x 1-3/4 1-1/8 5/32 x 3-1/2
TH 3122 TF 3122 3/16 x 2-1/4 1-1/2 5/32 x 4-1/2
TH 3126 TF 3126 3/16 x 2-3/4 1-1/2 5/32 x 4-1/2
TH 3132 TF 3132 3/16 x 3-1/4 1-1/2 5/32 x 5-1/2
TH 3140 TF 3140 3/16 x 4 1-1/2 5/32 x 5-1/2
TH 1412 TF 1412 1/4 x 1-1/4 1 3-16 x 3-1/2
TH 1416 TF 1416 1/4 x 1-3/4 1-1/4 3-16 x 3-1/2
TH 1422 TF 1422 1/4 x 2-1/4 1-1/2 3-16 x 4-1/2
TH 1426 TF 1426 1/4 x 2-3/4 2 3-16 x 4-1/2
TH 1432 TF 1432 1/4 x 3-1/4 2 3-16 x 5-1/2
TH 1440 TF 1440 1/4 x 4 2 3-16 x 5-1/2
TH 1450 TF 1450 1/4 x 5 2 3-16 x 6-3/4
Both nail point and sharp point are available.
