CHEMICAL ANCHOR STUDS

CHEMICAL ANCHOR STUDS
產品名稱 : CHEMICAL ANCHOR STUDS
產品描述
* 產品介紹 :

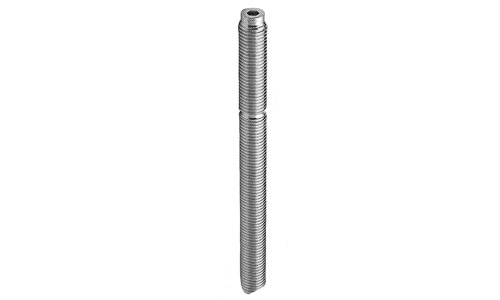

• Studs in stainless steel and yellow zinc plated steel.

• Heavy duty fixing without radial influence of expansion forces can be used close to edges.

• Accurate drill depth is necessary.

• Fully loadable after the prescribed hardening-setting time.
產品介紹
* 產品介紹 :

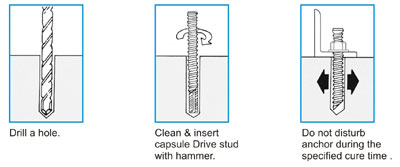

proimages/Anchor/CHEMICAL_ANCHOR_STUDSp28-03.jpg

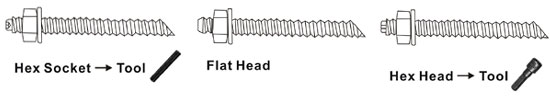

proimages/Anchor/CHEMICAL_ANCHOR_STUDSp28-04.jpg
Order
Code		 Stud
Sizes		 Max Thickness
Fastened		 Hole
Size		 Hole
Depth		 Box
Qty/Pcs
    (mm) (mm) (mm)
CAM-08 M8 x 110 16 10 80 20
CAM-10 M10 x 130 22 12 90 10
CAM-12 M12 x 160 30 14 110 10
CAM-16 M16 x 190 38 18 125 5
CAM-20 M20 x 260 70 25 170 5
CAM-24 M24 x 300 65 28 210 5
CAM-30 M30 x 380 70 35 280 5
CAI-25 5/16 x 4 1/2 3/4 3/8 3 3/8 20
CAI-30 3/8 x 5 1 7/16 3 5/8 10
CAI-40 1/2 x 6 1/4 1 1/4 9/16 3 9/16 10
CAI-50 5/8 x 7 1/2 1 3/4 3/4 6 5
CAI-60 3/4 x 10 1/4 2 3/4 7/8 7 1/2 5
CAI-70 7/8 x 11 3/4 3 3/4 1 8 1/2 5
CAI-80 1 x 11 3/4 2 1/2 1 1/8 8 1/2 5
CAI-100 1 1/4 x 14 1/8 2 1 7/16 11 1/2 5
Stainless steel and special length are available.
proimages/Anchor/CHEMICAL_ANCHOR_STUDSp28-05.jpg

Order
No		 Capsule
Sizes		 Hole Length
(mm)		 Hole Dia.
(mm)		 Box
Qty/Pcs
CPS-08 M8 x 80 82 10 10
CPS-10 M10 x 90 92 12 10
CPS-12 M12 x 110 92 14 10
CPS-16 M16 x 125 130 18 5
CPS-20 M20 x 170 175 25 5
CPS-24 M24 x 210 215 28 5
CPS-30 M30 x 265 270 35 5
